Flatlands

Introducing FLATLANDS

Named after the vast plains that cover much of the Earth, Flatlands monotone texture is ideal for creating an overall appearance on the floor. Flatlands provides a high performing ‘fit for purpose’ backdrop to functional spaces and can be used independently or as a matching coordinate together with the patterns of Mesa, Over the Ocean and Across the Sea.

EcoSoft

Specification

Collection :	FLATLANDS
Construction :	Multi Level Texture Tufted
Yarn Content :	100% Solution Dyed Nylon
Machine Gauge :	1/10 inch
Pile Height :	3 – 4 mm 0.118 – 0.157 inch
Total Weight :	2880 gm/sm 84.9 oz/sy
Primary Backing :	Non Woven Polyester Spunbonded
Secondary Backing :	EcoSoft®, Recycled Cushion Backing
Tile Size :	25 x 100 cm. / 50 x 50 cm

Performance Test and Treatment

Surface Flammability	ASTM D2859 / CPSC FF 1-70 Pill Test Pass
Hot Metal Nut	BS 4790 Low Radius
Radiant Panel Test	ASTM E648 Class 1
Smoke Density	ASTM E662< 450
Fire Classification	BS EN 13501
Indoor Air Quality	CRI Green Label Plus
Electrostatic Propensity	AATCC 134< 3.0 KV
End Use Classification	BS EN 1307 Class 33 – Heavy Commercial
Castor Chair Index	BS EN 985 ≥ 2.4
Dimensional Stability	BS EN 986 < 0.15%
Colorfastness to Light	ISO 105 B02 Minimum L6
Sound Absorption	BS EN ISO 354 NRC 0.3 or higher
Treatments	Stain and Soil Protection, Anti Microbial (Optional) & Antiviral (Optional)

EcoSquare

Specification

Collection :	FLATLANDS
Construction :	Multi Level Texture Tufted
Yarn Content :	100% Solution Dyed Nylon
Machine Gauge :	1/10 inch
Pile Height :	3 – 4 mm 0.118 – 0.157 inch
Total Weight :	3995 gm/sm 117.8 oz/sy
Primary Backing :	Non Woven Polyester Spunbonded
Secondary Backing :	EcoSquare®, Reinforced Recycled Backing
Tile Size :	25 x 100 cm. / 50 x 50 cm

Performance Test and Treatment

Surface Flammability	ASTM D2859 / CPSC FF 1-70 Pill Test Pass
Hot Metal Nut	BS 4790 Low Radius
Radiant Panel Test	ASTM E648 Class 1
Smoke Density	ASTM E662< 450
Indoor Air Quality	CRI Green Label Plus
Electrostatic Propensity	AATCC 134< 3.0 KV
End Use Classification	BS EN 1307 Class 33 – Heavy Commercial
Castor Chair Index	BS EN 985 ≥ 2.4
Dimensional Stability	BS EN 986 < 0.15%
Colorfastness to Light	ISO 105 B02 Minimum L6
Sound Absorption	BS EN ISO 354 NRC 0.15 or higher
Treatments	Stain and Soil Protection, Anti Microbial (Optional) & Antiviral (Optional)

Due diligence of Flooring Contractor
The information shared are “recommendations” only and the installation flooring contractor must always dry-lay an area of approximately 4 cartons (20m2) and obtain the approval and sign-off by the Interior designer and project manager, before proceeding with a permanent application. Irrespective, during installation the carpet installer must be responsible to observe any ‘bold’ patterning lines occurring where the same color (dark or light) of edge yarn creates a noticeable wider line at the butt-join and relocate the adjacent module into another position.
For specific instructions or advice, please consult your local Carpets Inter representative Office.

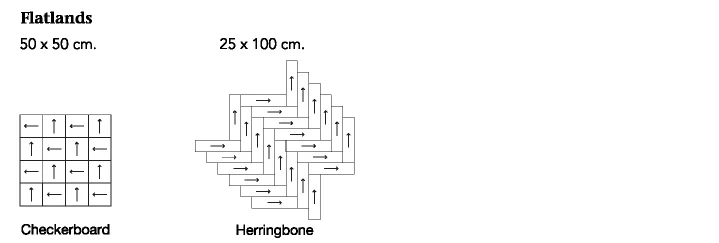

50x50 cm.
